Vicell T-series PET TDS

Core Material Expert -- always beyond excellence

Vicell T-series PET TDS

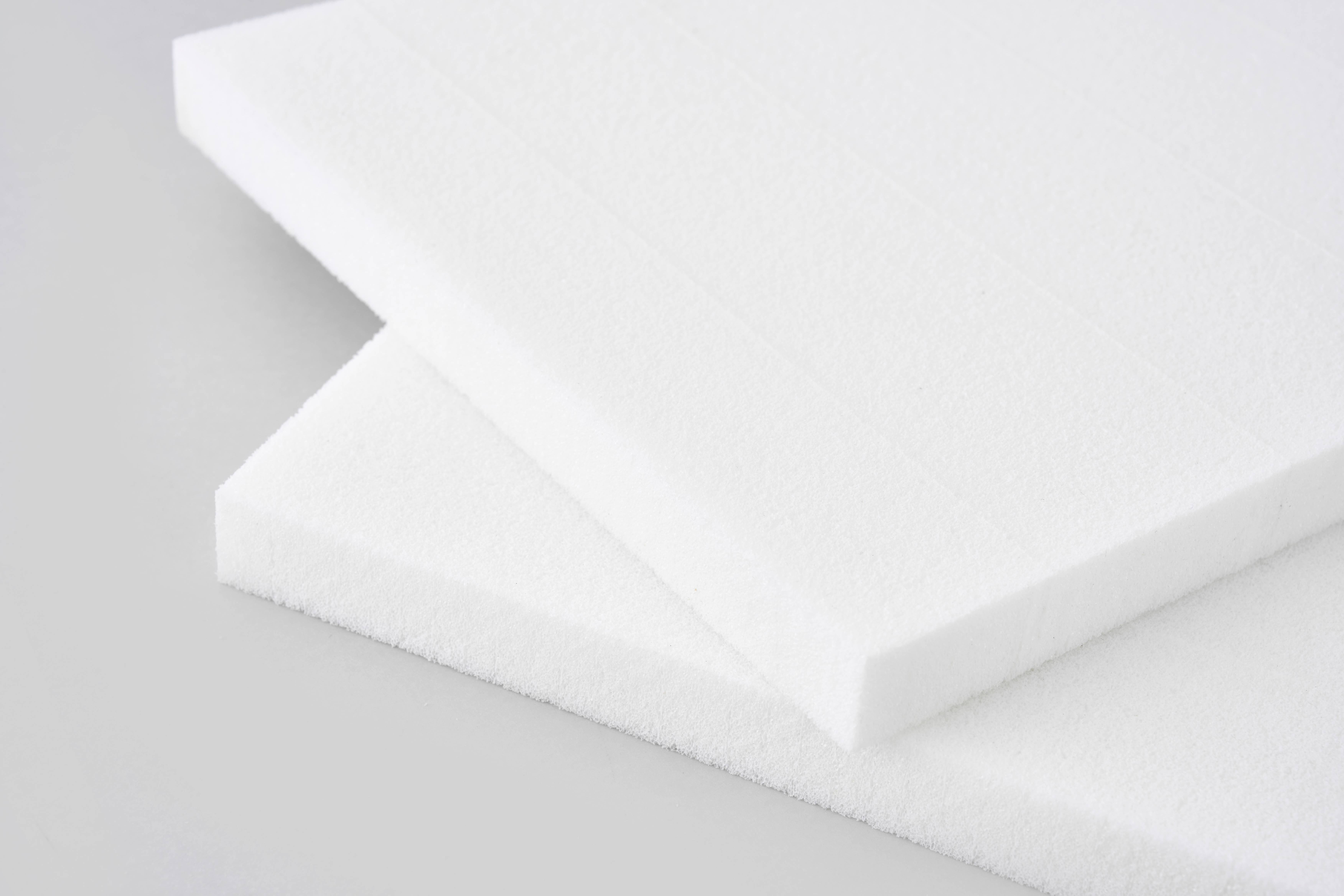

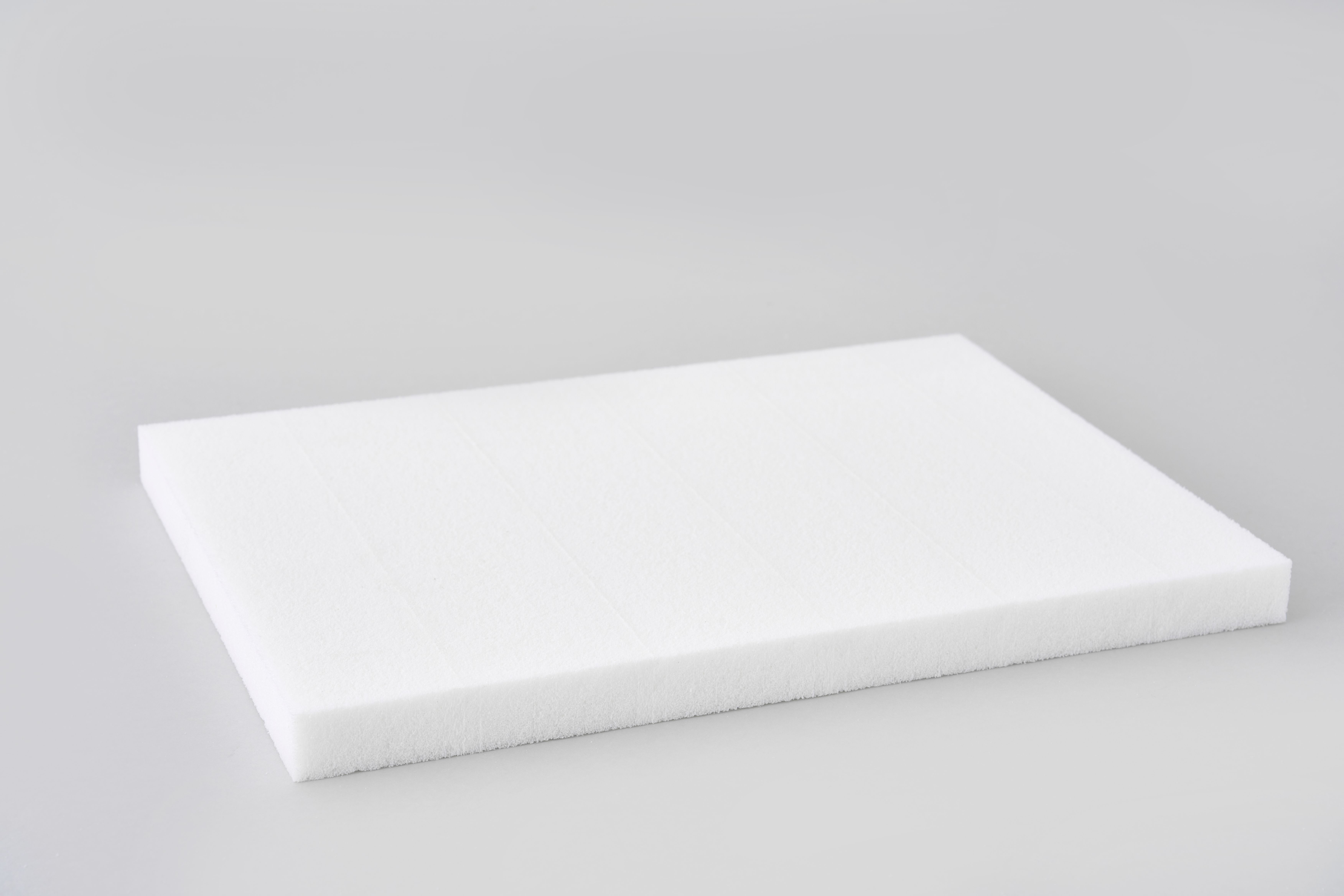

Vicell T, a closed cell foam,using PET as its base material,has many good mechanical properties.Therefore,it is often used as core materials with sandwich structures,and widely used in constructions,road transportation,rail transit, aviation,ships,wind power and other fields; Vicell PET foam has excellent fatigue resistance and is suitable for many kinds of resin and molding process,in which it is able to bear very high solidifying temperature. Vicell T has various sizes and specifications available for customers,can be customized according to customer’s various technical requirements, and is suitable for a variety of follow-up machining.Besides (S)are types with surface treatment. These types could reduce the surface resin uptake, meanwhile maintaining the same mechanical properties.
◆Easy processing: thermal forming can forge complicated shapes and structures, heat stability is still maintained in heating condition.
◆Good mechanical property: excellent shear, compression and excellent fatigue resistance.
◆Good resin compatibility, and excellent chemical stability.
◆Recyclable: scrap material, chips during the PET production process and waste products after use can be recycled.
◆High temperature resistance: it can ensure around 150℃ while during process, it can ensure the temperature around 100℃ for long periods.

Performance indexes

测试项目

测试标准   Standard

单位

值

T60/   T60(S)

T80/

T100/

T115/ T115(S)

T135 /T135(S)

T150/ T150(S)

T200/ T200(S)

T250/ T250(S)

T300/T300(S)

Item

Unit

Value

T80(S)

T100(S)

密度

ISO 845

Kg/m3

公称密度

65

85

100

115

135

150

200

250

300

Density

Nominal density

区间Range

60-70

80-90

95-105

110-120

130-140

145-155

190-210

235-260

270-330

压缩强度Z

ISO 844

MPa

平均值Mean

0.85

1.05

1.5

1.8

2.2

2.5

3.8

4.9

6.5

Compression strength Z

最小值Minimum

0.7

0.85

1.3

1.5

1.8

2.3

3.3

4.4

5.5

压缩模量Z

ISO 844

MPa

平均值Mean

55

80

95

115

135

145

200

260

330

Compression modulus Z

最小值Minimum

45

65

80

95

115

120

170

200

270

拉伸强度Z

ASTM C297

MPa

平均值Mean

1.4

1.45

1.8

2

2.25

2.4

2.9

3.4

3.7

Tensile strength Z

最小值Minimum

1.15

1.25

1.4

1.5

1.8

2

2.3

2.8

2.9

拉伸模量Z

ASTM C297

MPa

平均值Mean

80

95

110

130

150

160

210

260

350

Tensile modulus Z

最小值Minimum

70

85

90

110

125

135

170

200

300

剪切强度XZ       Shear strength XZ

ISO 1922

MPa

平均值Mean

0.5

0.61

0.8

1

1.2

1.4

2

2.3

2.5

最小值Minimum

0.42

0.55

0.72

0.85

1.05

1.25

1.6

1.8

2

剪切模量XZ        Shear modulus XZ

ISO 1922

MPa

平均值Mean

15

20

26

31

37

45

65

85

105

最小值Minimum

12

17

22

26

32

39

57

75

98

剪切强度YZ       Shear strength YZ

ISO 1922

MPa

平均值Mean

0.5

0.59

0.79

0.95

1.18

1.35

1.9

2.2

2.45

最小值Minimum

0.4

0.5

0.71

0.8

1.03

1.2

1.55

1.75

2

剪切模量YZ        Shear modulus YZ

ISO 1922

MPa

平均值Mean

15

19

25

28

35

40

59

78

90

最小值Minimum

12

16

21

25

31

36

55

72

85

剪切断裂延伸率XZ、YZ

ISO 1922

%

平均值Mean

20

22

16

13

11

9

6

5

3

Shear breaking elongation XZ、YZ

最小值Minimum

15

16

10

8

7

5

4

3

2

标准板材Standard sheet

Length

mm

2445

Tolerance

±5

Width

mm

1220/1005

Tolerance

±5


1、Minimum values by DNV definition.

2、The average value is the average mechanical property of the nominal density within the product density range.



Scope of application

Scope of application

Shipbuilding market, rail transit, new energy vehicles, wind power market, construction and decoration, etc.
