Vicell P-series PMI TDS

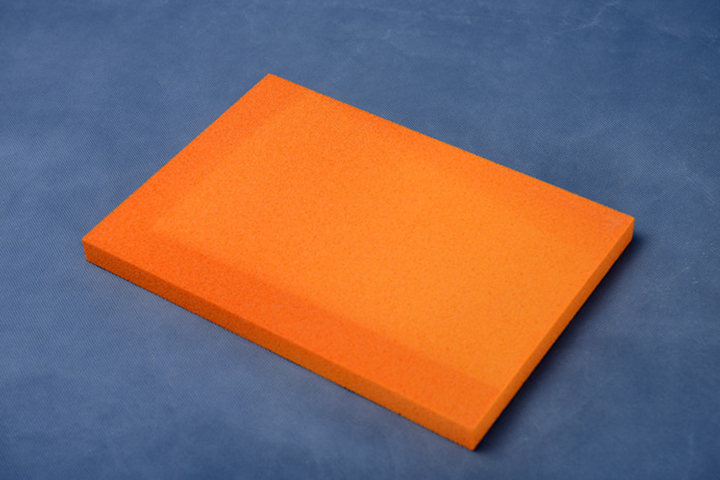

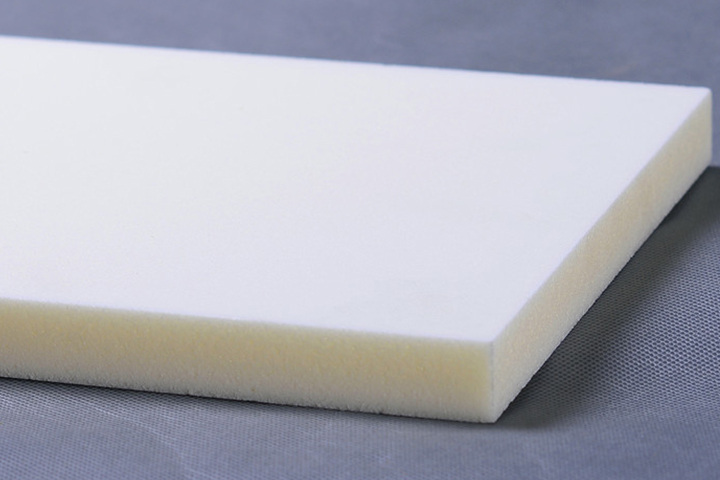

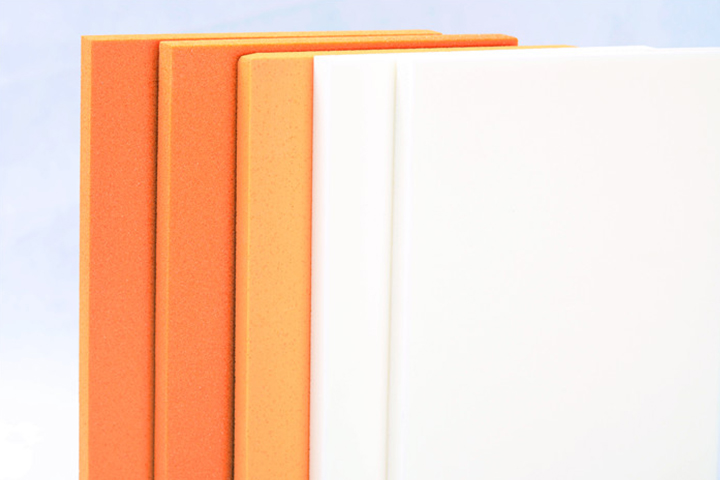

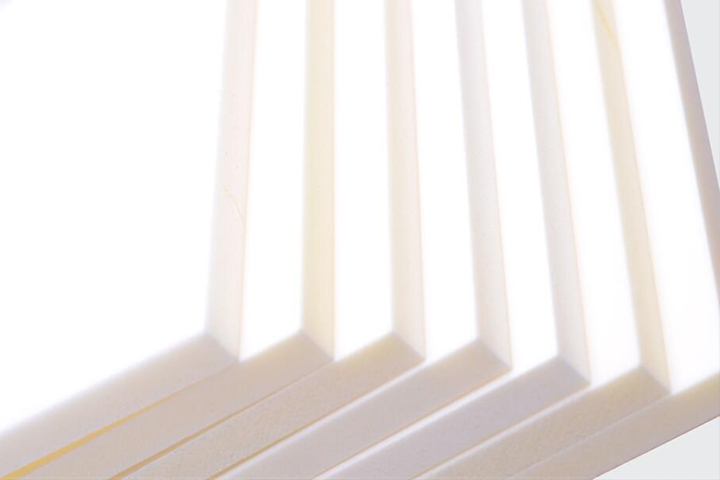

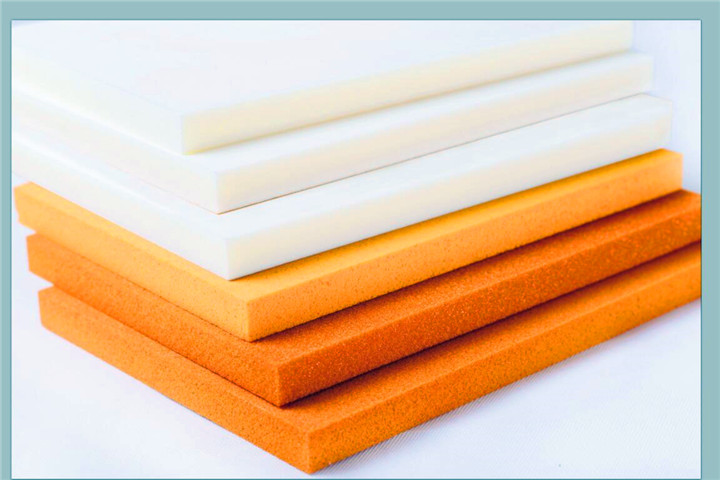

PMI foam board is the abbreviation of Polymethacrylimide foam board ,is has good mechanical properties. Under the same density, its tensile, compression, bending, shear and other properties are far superior to other foam such as PVC, PU, PET, etc; The closed cell rate is over 95%, isotropic, which can improve the strength of composite materials and be applied to more fields; Easy to process, can be processed into various complex shapes using hot forming or mechanical processing methods; It has good adhesion and can achieve a good bonding interface with adhesives such as epoxy resin, unsaturated polyester resin, bismaleimide resin, cyanate ester resin, etc; ; Has excellent resistance to compression creep. VISIGHT PMI products currently include five series: Vicell P, Vicell PH, Vicell Pb, Vicell Px and Vicell Pw.

◆The Vicell P model product achieves co curing with panels under 150 ℃ and hot press pressure conditions, and its application areas include medical bed boards, sports equipment, rail transit, etc.
◆The Vicell PH model product achieves co curing with panels under 180 ℃ and hot press pressure conditions, and its application areas include aerospace, military, medical equipment, antenna radar, etc.
◆The Vicell Pb series can achieve a hot deformation temperature of up to 200 ℃ and can be co cured with high-temperature cured epoxy resin prepreg. The pore size range is 0.3mm-0.5mm, and its application fields are aerospace, rail transit, etc.
◆The Vicell Px series has a thermal deformation temperature of up to 180 ℃ and can be co cured with high-temperature cured epoxy resin prepreg. The pore size ranges from 0.1mm to 0.3mm, and its application areas include aerospace, sports equipment, medical bed boards, audio speakers, etc.
◆The Vicell Pw series has a thermal deformation temperature of up to 180 ℃ and can be co cured with high-temperature cured epoxy resin prepreg. The pore size is ≤ 0.2mm, which can reduce the absorption of resin, reduce the weight of composite materials, and improve wave transmission performance. Its application fields include aerospace, military, medical equipment, antenna radar, etc.

Vicell P, Vicell pH performance indicators

项目	测试标准	单位	值	P40	P60	P80	P100	P130	P200
Item	Test standard	Unit	Value	P40	P60	P80	P100	P130	P200
密度	ISO 845	Kg/m3	AVG	40	60	80	100	130	200
Density	ISO 845	Kg/m3	Interval	35-50	51-70	71-90	91-115	116-150	180-225
压缩强度	ASTM D1621	MPa	AVG	0.7	1.1	1.7	2.4	3.5	5.3
Compression strength	ASTM D1621	MPa	MIN	0.5	1	1.5	2.2	3	4.8
拉伸强度	ASTM D638	MPa	AVG	1.5	1.9	2.8	3.9	5	7
Tensile strength	ASTM D638	MPa	MIN	1.3	1.6	2.3	3	4	6
拉伸模量	ASTM D638	MPa	AVG	50	70	100	125	140	200
Tensile modulus	ASTM D638	MPa	MIN	45	55	85	110	120	180
剪切强度	ASTM C273	MPa	AVG	0.7	0.9	1.3	1.7	2.4	3.7
Shear strength	ASTM C273	MPa	MIN	0.6	0.8	1	1.5	2	3.3
剪切模量	ASTM C273	MPa	AVG	18	25	35	45	60	90
Shear modulus	ASTM C273	MPa	MIN	7	22	30	40	50	80

项目	测试标准	单位	值	PH45	PH60	PH80	PH100	PH130
Item	Test standard	Unit	Value	PH45	PH60	PH80	PH100	PH130
密度	ISO 845	Kg/m3	AVG	45	60	80	100	130
Density	ISO 845	Kg/m3	Interval	35-50	51-70	71-90	91-115	116-150
压缩强度	ASTM D1621	MPa	AVG	0.9	1.3	1.9	2.7	3.8
Compression strength	ASTM D1621	MPa	MIN	0.6	1.2	1.7	2.4	3.3
拉伸强度	ASTM D638	MPa	AVG	1.6	2.1	3.2	4.5	6
Tensile strength	ASTM D638	MPa	MIN	1.3	2	3	4	4.5
拉伸模量	ASTM D638	MPa	AVG	60	85	120	130	160
Tensile modulus	ASTM D638	MPa	MIN	50	70	110	120	130
剪切强度	ASTM C273	MPa	AVG	0.7	1.1	1.35	1.8	2.5
Shear strength	ASTM C273	MPa	MIN	0.6	1	1.1	1.6	2.1
剪切模量	ASTM C273	MPa	AVG	20	30	45	60	85
Shear modulus	ASTM C273	MPa	MIN	10	25	34	50	60

Vicell Pb, Vicell Px, Vicell Pw performance indicators

项目 Item	测试标准 Test standard	单位 Unit	值 Value	Pb31	Pb51	Pb71	Pb110
密度 Density	ISO 845	kg/m³	AVG	32	55	75	110
密度 Density	ISO 845	kg/m³	Interval	26-38	47-63	65-95	96-125
压缩强度Compression strength	ISO 844	MPa	AVG	0.43	0.95	1.60	3.5
压缩强度Compression strength	ISO 844	MPa	MIN	0.25	0.5	1.05	2.3
拉伸强度 Tensile strength	ASTM D638	MPa	AVG	1.00	1.60	2.65	3.6
拉伸强度 Tensile strength	ASTM D638	MPa	MIN	0.58	1.0	1.5	2.4
拉伸模量 Tensile modulus	ASTM D638	MPa	AVG	36	75	100	180
拉伸模量 Tensile modulus	ASTM D638	MPa	MIN	25	45	75	120
剪切强度 Shear strength	ASTM C273	MPa	AVG	0.40	0.8	1.25	2.4
剪切强度 Shear strength	ASTM C273	MPa	MIN	0.3	0.53	0.95	1.7
剪切模量 Shear modulus	ASTM C273	MPa	AVG	14	28	40	75
剪切模量 Shear modulus	ASTM C273	MPa	MIN	7	17	28	46

项目 Item	测试标准 Test standard	单位 Unit	值 Value	Px31	Px51	Px71	Px110
密度 Density	ISO 845	kg/m³	AVG	32	55	75	110
密度 Density	ISO 845	kg/m³	Interval	26-38	47-63	65-95	96-125
压缩强度Compression strength	ISO 844	MPa	AVG	0.45	1.0	1.60	3.50
压缩强度Compression strength	ISO 844	MPa	MIN	0.25	0.50	1.00	2.30
拉伸强度 Tensile strength	ASTM D638	MPa	AVG	1.00	1.65	2.80	3.50
拉伸强度 Tensile strength	ASTM D638	MPa	MIN	0.60	1.00	1.55	2.40
拉伸模量 Tensile modulus	ASTM D638	MPa	AVG	36	72	95	175
拉伸模量 Tensile modulus	ASTM D638	MPa	MIN	25	40	72	120
剪切强度 Shear strength	ASTM C273	MPa	AVG	0.42	0.82	1.25	2.30
剪切强度 Shear strength	ASTM C273	MPa	MIN	0.3	0.51	0.95	1.70
剪切模量 Shear modulus	ASTM C273	MPa	AVG	14	26	39	73
剪切模量 Shear modulus	ASTM C273	MPa	MIN	7	15	25	45

项目 Item	测试标准 Test standard	单位 Unit	值 Value	Pw31	Pw51	Pw71	Pw110
密度 Density	ISO 845	kg/m³	AVG	32	55	75	110
密度 Density	ISO 845	kg/m³	Interval	26-38	47-63	65-95	96-125
压缩强度Compression strength	ISO 844	MPa	AVG	0.43	1.0	1.65	3.6
压缩强度Compression strength	ISO 844	MPa	MIN	0.25	0.55	1.05	2.5
拉伸强度 Tensile strength	ASTM D638	MPa	AVG	1.05	1.65	2.8	3.4
拉伸强度 Tensile strength	ASTM D638	MPa	MIN	0.63	0.9	1.55	2.4
拉伸模量 Tensile modulus	ASTM D638	MPa	AVG	38	72	95	170
拉伸模量 Tensile modulus	ASTM D638	MPa	MIN	26	40	75	125
剪切强度 Shear strength	ASTM C273	MPa	AVG	0.40	0.80	1.25	2.15
剪切强度 Shear strength	ASTM C273	MPa	MIN	0.3	0.50	0.94	1.6
剪切模量 Shear modulus	ASTM C273	MPa	AVG	13	25	39	75
剪切模量 Shear modulus	ASTM C273	MPa	MIN	7	15	25	45

1.The tensile strength and modulus are dumbbell tensile without adhesive.

2.The thickness of compressive strength and modulus test samples is 50mm, the thickness of tensile strength and modulus test samples is 10mm.

3.The minimum value is to ensure the minimum mechanical properties within the product density range.

application area

PMI is the material that has the best mechanical property and the widest technological adaptability, The high rate of closed-cell PMI has uniform cells, and its mechanical property is isotropic, which would be the first choice foam core for high-end product. We develop several models to meet diversified application requirements based on our basic PMI series called “Vicell-P”. Different models have excellent basic physical property in common, but different product characteristics.
